Keen Zoning Technical Specs
Smart Vent
Dimensions & Weight
![](http://keenhome.io/cdn/shop/products/products_smart-vent-4x10_1024x1024.png?12874)
4"x10"
-
Interior (for duct):
- Height: 3.5”
- Length: 9.75”
- Max Depth: 3“
-
Exterior:
- Height: 5.1“
- Length: 11.7”
-
Weight:
- 1.75 lbs
![](http://keenhome.io/cdn/shop/products/products_smart-vent-4x12_1024x1024.png?12874)
4"x12"
-
Interior (for duct):
- Height: 3.5”
- Length: 11.5”
- Max Depth: 3“
-
Exterior:
- Height: 5.1“
- Length: 13.7”
-
Weight:
- 2 lbs
![](http://keenhome.io/cdn/shop/products/products_smart-vent-6x10_1024x1024.png?12874)
6"x10"
-
Interior (for duct):
- Height: 5.5”
- Length: 9.75”
- Max Depth: 3“
-
Exterior:
- Height: 7.5“
- Length: 11.7”
-
Weight:
- 2.25 lbs
![](http://keenhome.io/cdn/shop/products/products_smart-vent-6x12_1024x1024.png?12874)
6"x12"
-
Interior (for duct):
- Height: 5.5”
- Length: 11.5”
- Max Depth: 3“
-
Exterior:
- Height: 7.5“
- Length: 13.7”
-
Weight:
- 2.6 lbs
Faceplates
![](http://keenhome.io/cdn/shop/t/82/assets/herringbone.png?v=28096112791760652221578025635)

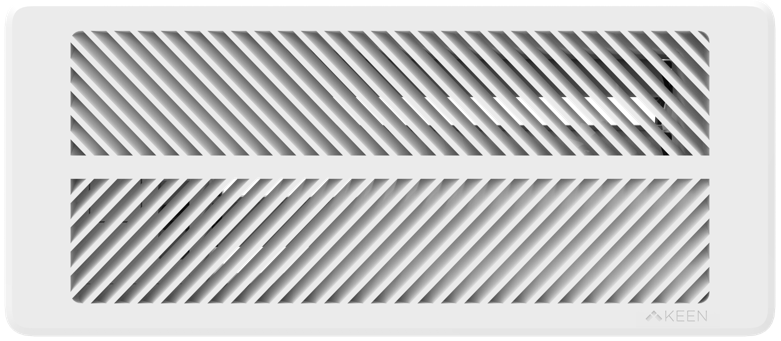

Herringbone
![](http://keenhome.io/cdn/shop/t/82/assets/arbor.png?v=17497291962677358761578025549)

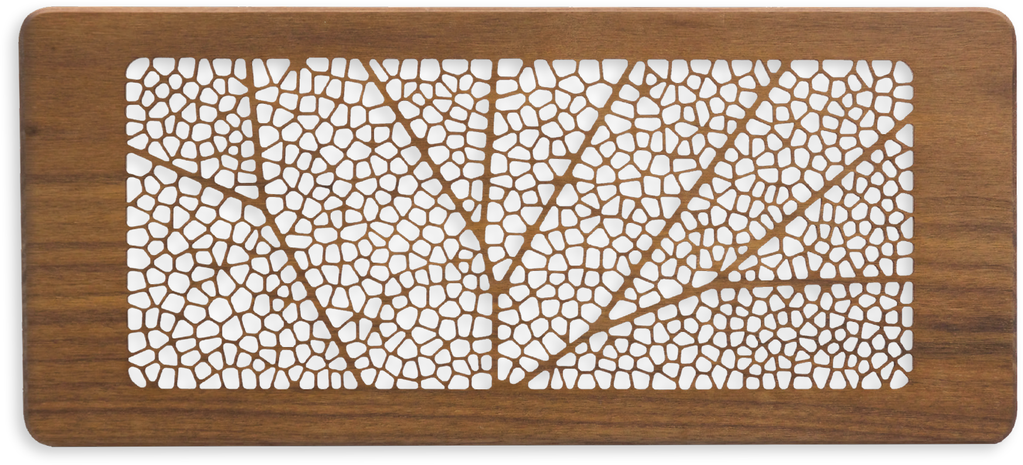

Arbor
Features
-
Sensors
- Duct Temperature
- Duct Pressure
-
Connectivity
- 802.15.4 ZigBee Radio
-
Compatibility
- Nest
- Ecobee
- Samsung SmartThings
- Lowe's Iris
- Securfi
-
Battery
- AA batteries x 4
- Battery life: 2+ years
-
Control
- Mobile device running iOS 8.0+ or Android 4.4+
-
Placement
- Floor
- Wall
- Ceiling (mounting hardware included)
Requirements
High Speed Internet Connection
(DSL, cable, fiber, satellite)
Central HVAC
Forced air central heating and/or cooling system
Mobile Device
iOS 8.0+ or Android 4.4+
Connected Home Bridge/Hub
Keen Home Smart Bridge, Lowe’s
Iris Smart Hub, SmartThings Hub
What’s Included
Smart Vent
Herringbone faceplate
Ceiling Mounting Clips
2 x Drywall screws
4 x AA Duracell batteries
Smart Vent Trim Kit
Dimensions & Weight
![](http://keenhome.io/cdn/shop/t/82/assets/accessories_trim-kit-414.png?v=160029135396421078881578025541)

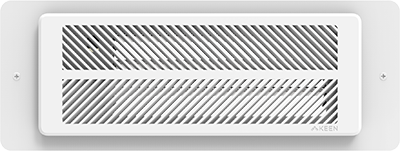

4”x14”
-
Interior (for duct):
- Height: 3.8”
- Length: 11.69”
-
Exterior:
- Height: 6.4“
- Length: 17”
-
Weight:
- 0.8 lbs
![](http://keenhome.io/cdn/shop/t/82/assets/accessories_trim-kit-614.png?v=21938438625032294781578025542)

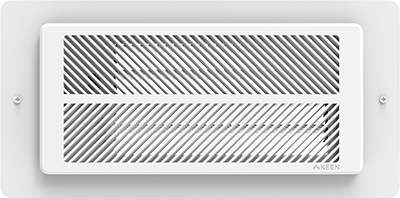

6”x14”
-
Interior (for duct):
- Height: 5.39”
- Length: 11.69”
-
Exterior:
- Height: 8.4“
- Length: 17”
-
Weight:
- 1 lb
![](http://keenhome.io/cdn/shop/t/82/assets/accessories_trim-kit-810.png?v=53114330104631338711578025542)

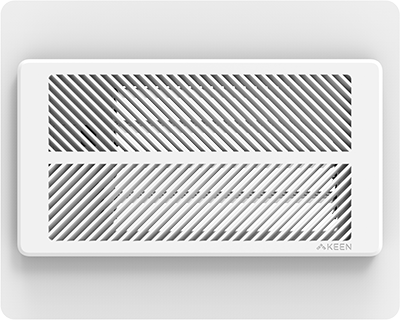

8”x10”
-
Interior (for duct):
- Height: 5.39”
- Length: 9.92”
-
Exterior:
- Height: 10.4“
- Length: 13”
-
Weight:
- 1.1 lbs
![](http://keenhome.io/cdn/shop/t/82/assets/accessories_trim-kit-812.png?v=55666338490309219841578025543)

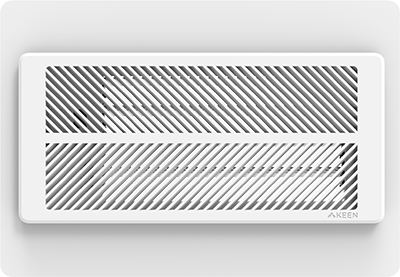

8”x12”
-
Interior (for duct):
- Height: 5.39”
- Length: 11.69”
-
Exterior:
- Height: 10.4“
- Length: 15”
-
Weight:
- 1.3 lbs
![](http://keenhome.io/cdn/shop/t/82/assets/accessories_trim-kit-814.png?v=43215367254563261851578025543)

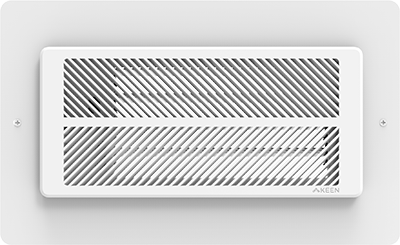

8”x14”
-
Interior (for duct):
- Height: 5.39”
- Length: 11.69”
-
Exterior:
- Height: 10.4“
- Length: 17”
-
Weight:
- 1.5 lbs
![](http://keenhome.io/cdn/shop/t/82/assets/accessories_trim-kit-1010.png?v=84164778379900063981578025540)

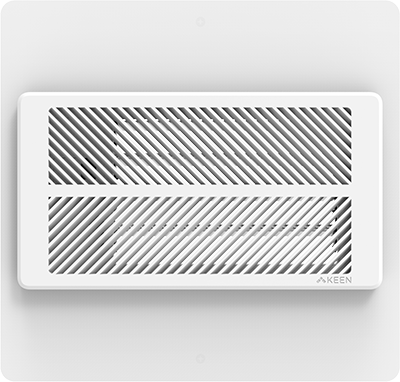

10”x10”
-
Interior (for duct):
- Height: 5.39”
- Length: 9.84”
-
Exterior:
- Height: 13“
- Length: 13”
-
Weight:
- 1.5 lbs
![](http://keenhome.io/cdn/shop/t/82/assets/accessories_trim-kit-1212.png?v=144859430844251684171578025541)

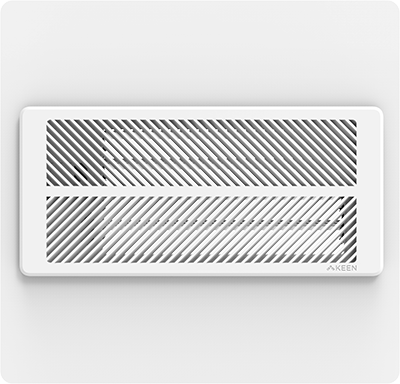

12”x12”
-
Interior (for duct):
- Height: 5.39”
- Length: 11.69”
-
Exterior:
- Height: 15“
- Length: 15”
-
Weight:
- 2.2 lbs

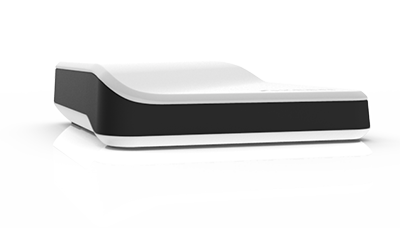

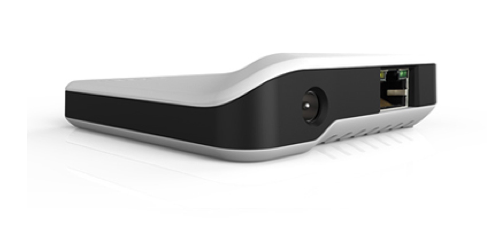

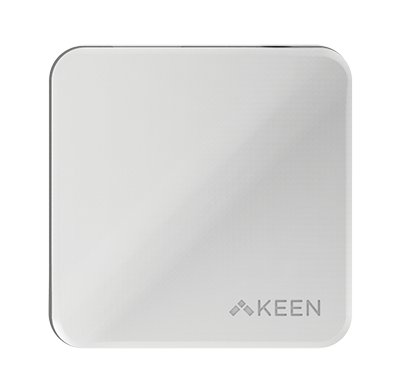

Smart Bridge
Dimensions & Weight
![](http://keenhome.io/cdn/shop/t/82/assets/products_smart-bridge02.png?v=52792900603298858391578025713)
![](http://keenhome.io/cdn/shop/t/82/assets/products_smart-bridge02.png?v=52792900603298858391578025713)
![](http://keenhome.io/cdn/shop/t/82/assets/products_smart-bridge04.png?v=90965953768990806131578025713)
![](http://keenhome.io/cdn/shop/t/82/assets/products_smart-bridge05.png?v=177006347729641809371578025714)
-
Dimensions:
- Height: 3.25”
- Length: 3.25”
- Depth: 0.84“
![](http://keenhome.io/cdn/shop/t/82/assets/products_smart-bridge04.png?v=90965953768990806131578025713)
-
Weight:
- 0.15 lbs (69.5 g)
![](http://keenhome.io/cdn/shop/t/82/assets/products_smart-bridge05.png?v=177006347729641809371578025714)
Features
-
Power
- 6V Power Adapter
-
Ports
- Ethernet
-
Integrations
- Nest
- ecobee
-
Connectivity
- ZigBee
-
Control
- Mobile device running iOS 8.0+ or Android 4.4+
-
Repeater Functionality
- Plug into any power outlet
Requirements
High Speed Internet Connection
(DSL, cable, fiber, satellite)
Mobile Device
iOS 8.0+ or Android 4.4+
What’s Included
Smart Bridge
Power Adapter
Ethernet Cord
Installation

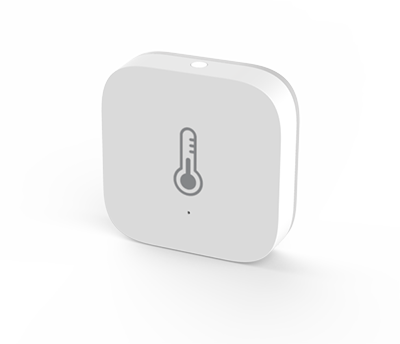

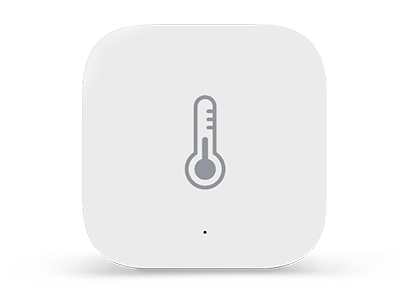

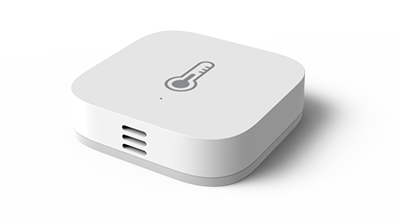

Temp Sensor
Dimensions & Weight
![](http://keenhome.io/cdn/shop/t/82/assets/products_temp-sensor_1.png?v=129784752072219431181578025715)
-
Dimensions:
- Height: 1.42”
- Length: 1.42”
- Depth: 0.35“
![](http://keenhome.io/cdn/shop/t/82/assets/products_temp-sensor_3.png?v=138263280249068022111578025716)
-
Weight:
- 0.025 lbs (11.2 g)
![](http://keenhome.io/cdn/shop/t/82/assets/products_temp-sensor_2.png?v=140247955513210863491578025715)
Features
-
Battery Life
- 2+ years
-
2+ years
- ZigBee
-
Control
- Mobile device using the Keen Home app
-
Transmit Distance
- >30m indoor; >60m in open air
Requirements
High Speed Internet Connection
(DSL, cable, fiber, satellite)
Mobile Device
iOS 8.0+ or Android 4.4+
Connected Home Bridge/Hub
Keen Home Smart Bridge, Lowe’s Iris
Smart Hub, SmartThings Hub
What’s Included
1 Temp Sensor
CR203 Battery
Adhesive mount (for optional wall placement)
